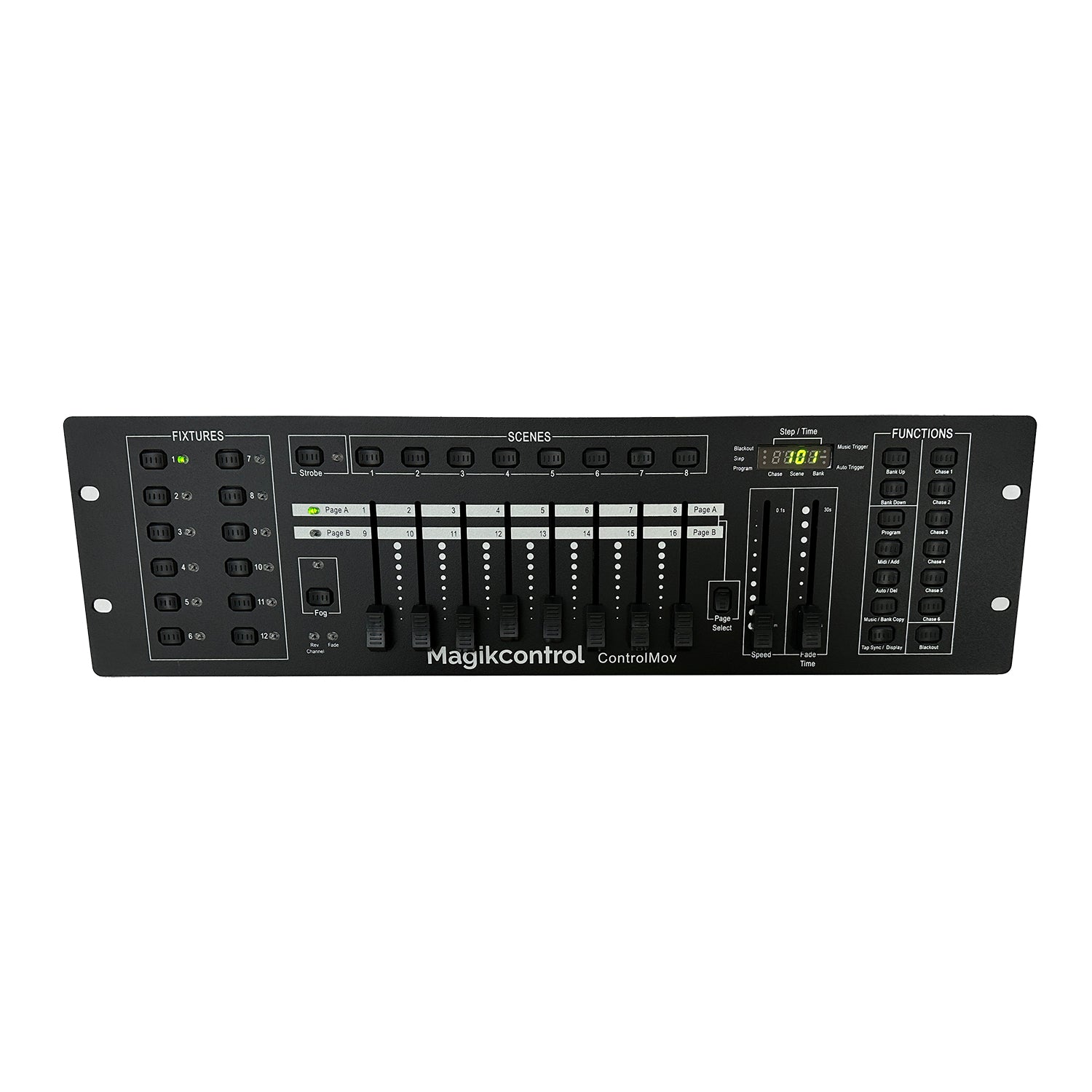

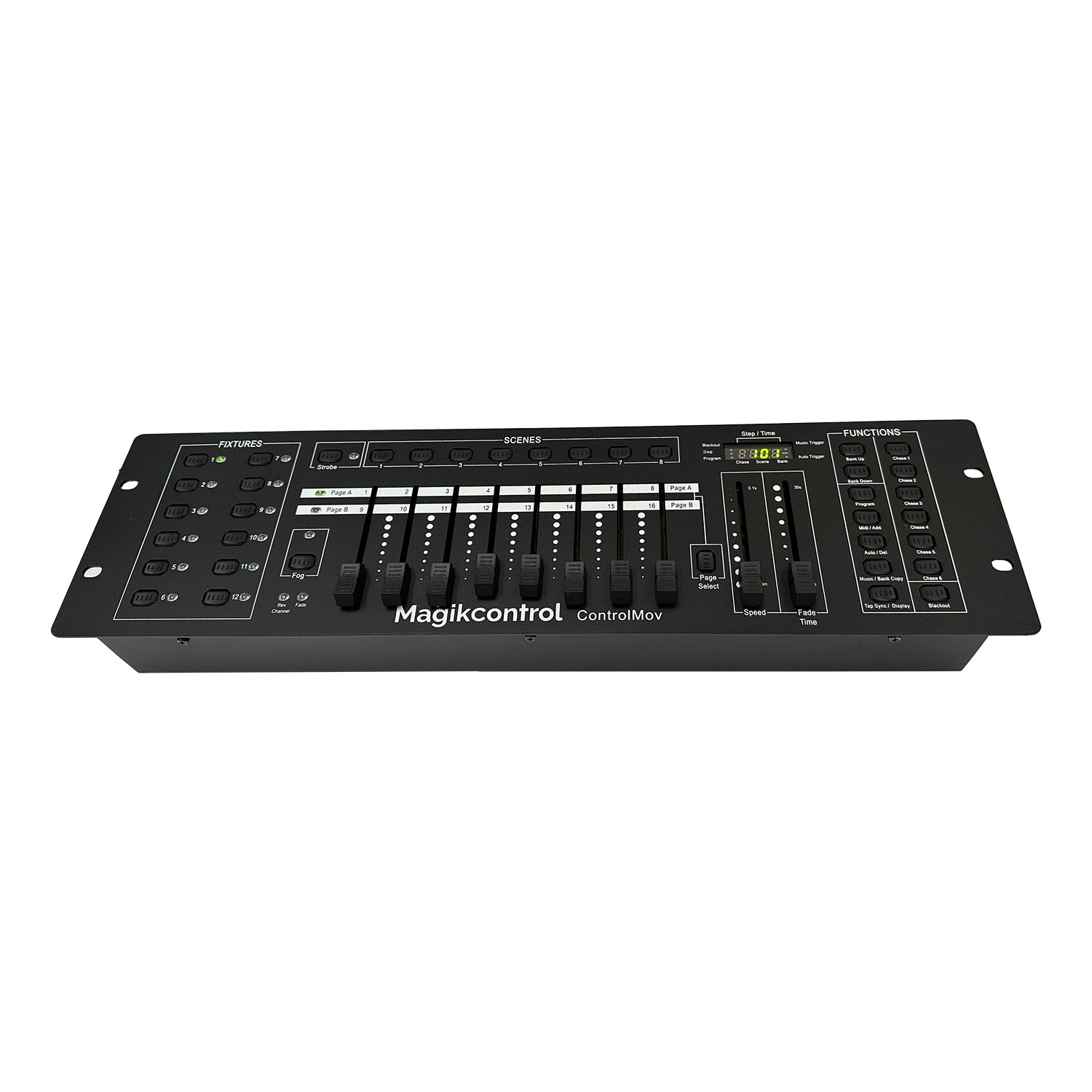

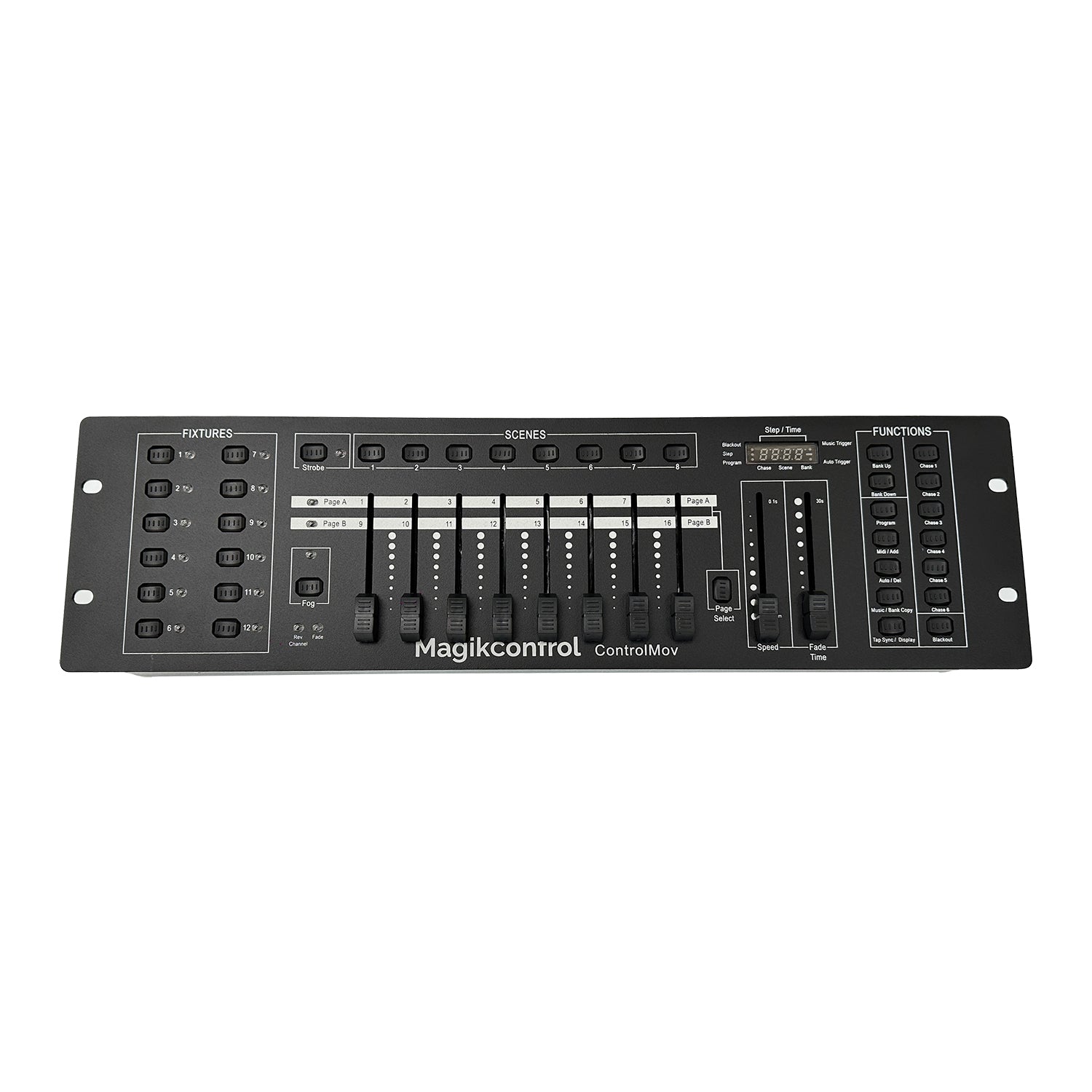

The DL DMX Controller 192 is an extremely compact, straightforward DMX lighting controller ideal for small venues, mobile DJs, touring bands, live venues and more. The compact controller is capable of controlling up to 12 separate intelligent lights with up to 16 DMX channels per fixture. The compact and affordable DMX Operator features up to 6 programmable chases, 8 individual faders, and 1 channel fader.

The DMX Operator 192 has 8 sliders for direct control of channels, as well as MIDI control. Connectors include DMX in/out, 90-240 VAC adapter input and a MIDI input port for external triggering of banks and chases using a MIDI device. There is also a 5V USB input for an optional gooseneck LED lamp.

Features:

  • An affordable solution for controlling DMX products
  • Control up to 192 DMX channels
  • 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
  • Fixtures with less than 16 DMX channels may be combined on 1 Channel Fader
  • Record up to 6 programmable chases with fade times and different speeds
  • 8 individual faders provide easy programmability for Intelligent lighting or Dimmer Packs
  • MIDI controllable
  • DMX-512 3 pin XLR signal
  • Built-in microphone
  • 5V USB input for LED Lamp
  • Blackout button

Technical Parameter:

  • Protocols: DMX 512/ USITT
  • DMX Channels: 12 Fixtures with 16 channels per fixture, total up to 192 channels
  • Chases: 6 chases with fade time and speeds
  • Scene: 30 banks, each with 8 scenes total of 240 programmable scenes
  • Microphone: Built-in Microphone

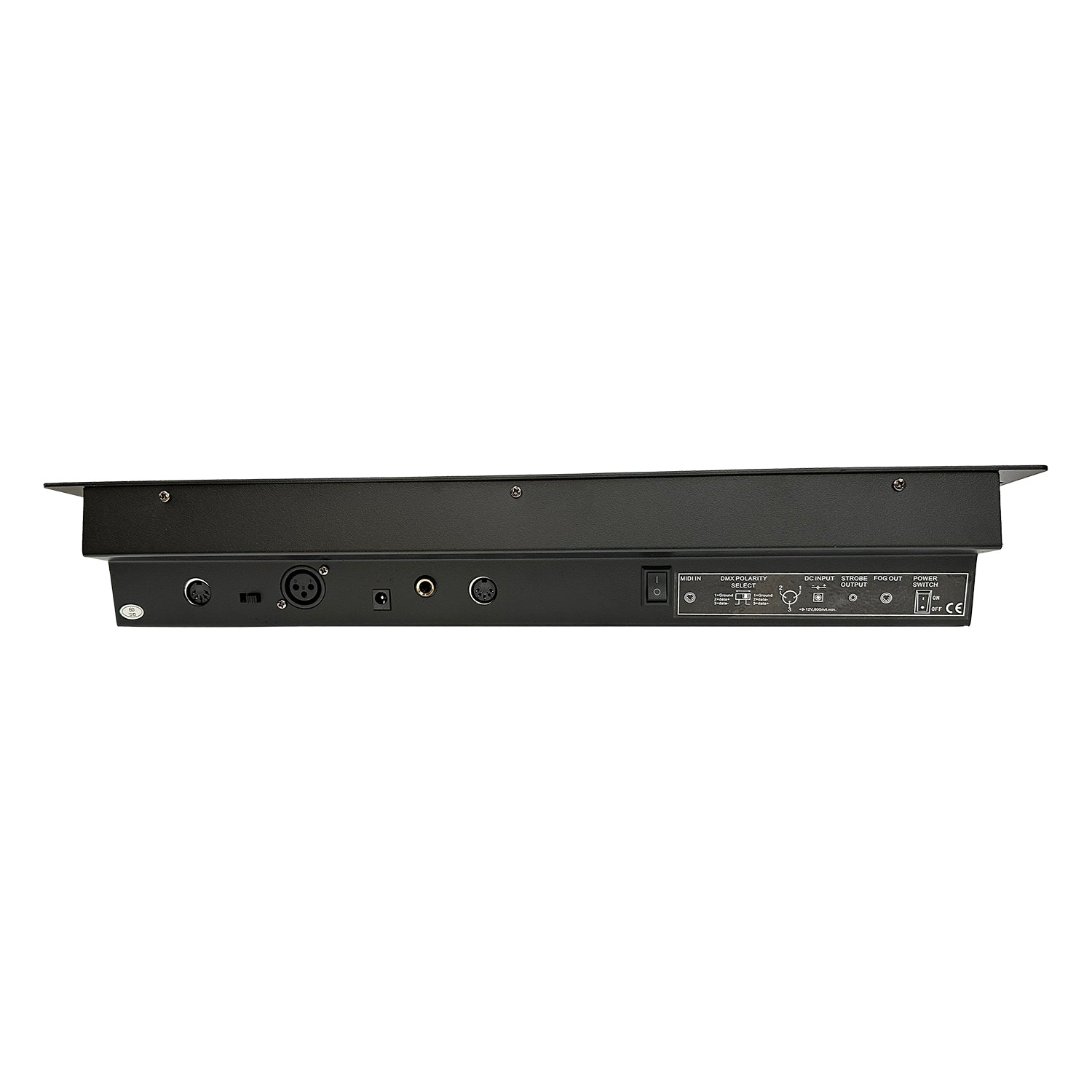

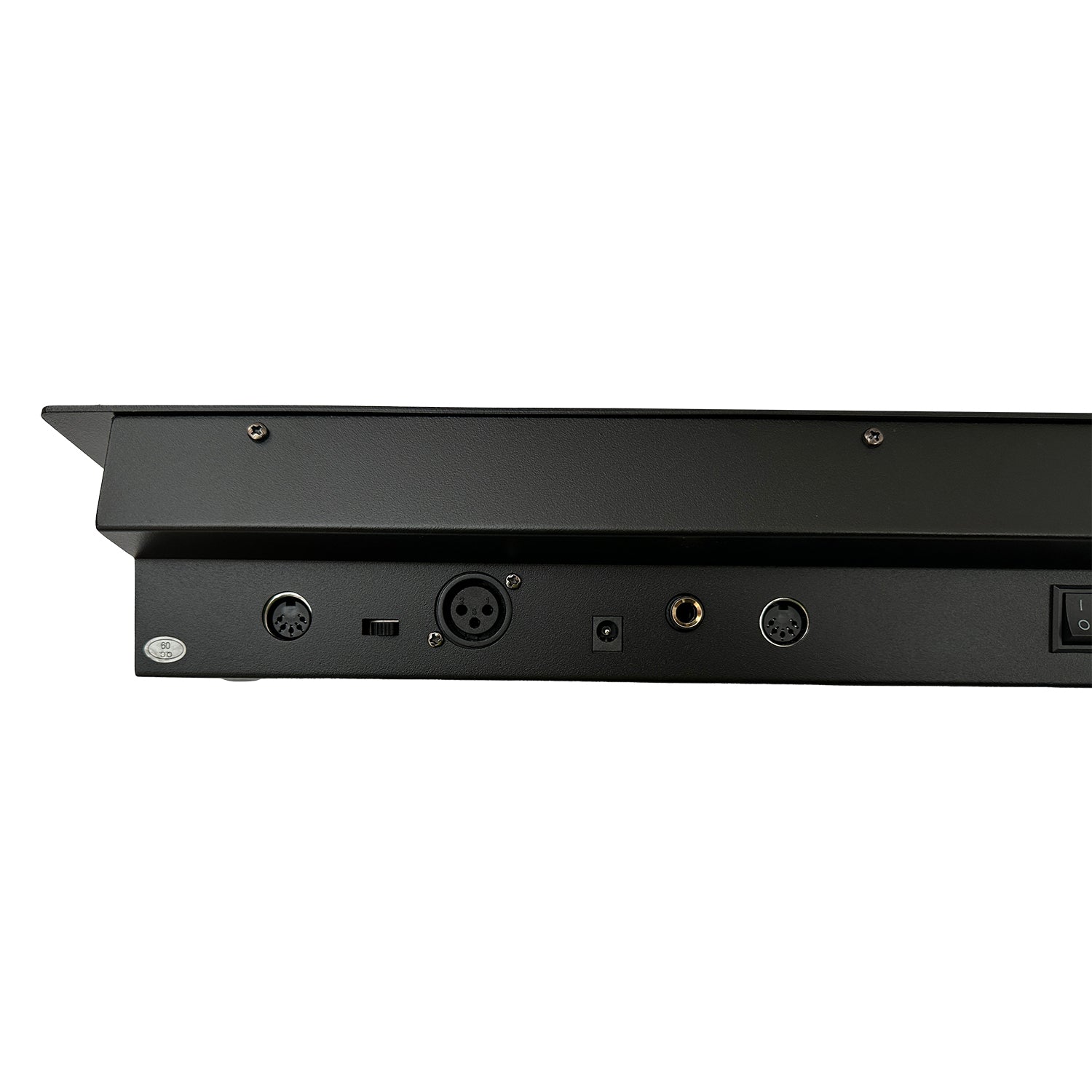

  • Connectors:
    • 3 pin DMX XLR in/out
    • 5 pin MIDI input
    • DC Input jack
    • Data pin configuration: pin 1 shield, pin 2 (-), pin 3 (+)
    • 5V USB Input
  • Display: 4 Digits LED Screen
  • Operating Temperature: 45 °C
  • Power: DC 9V-12V 500mA
