CR DMX 384 Channel DMX Controller
CR DMX 384 Channel DMX Controller
CR DMX 384 Channel DMX Controller
CR DMX 384 Channel DMX Controller
CR DMX 384 Channel DMX Controller

CR DMX 384 Channel DMX Controller

Tax included. Shipping calculated at checkout.

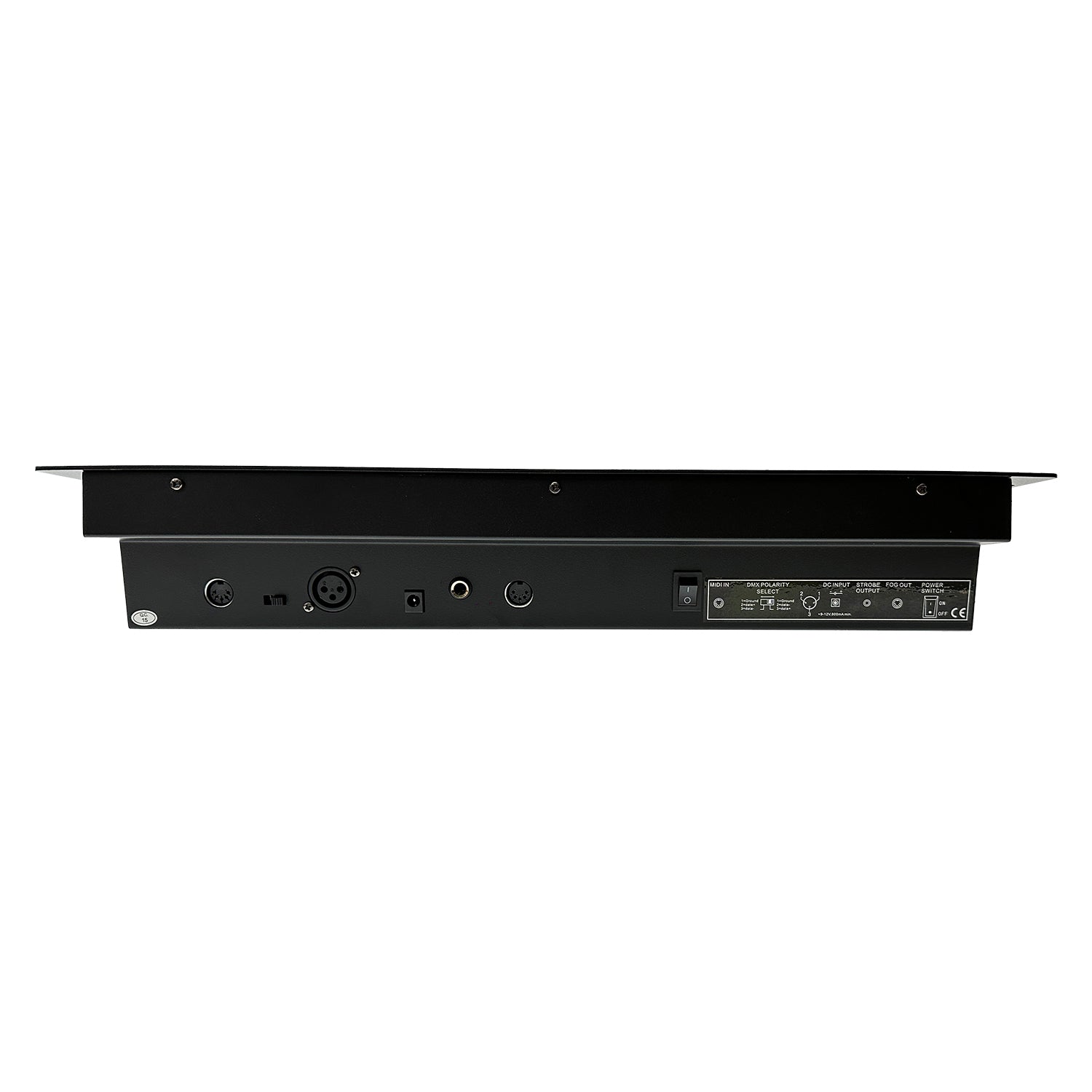

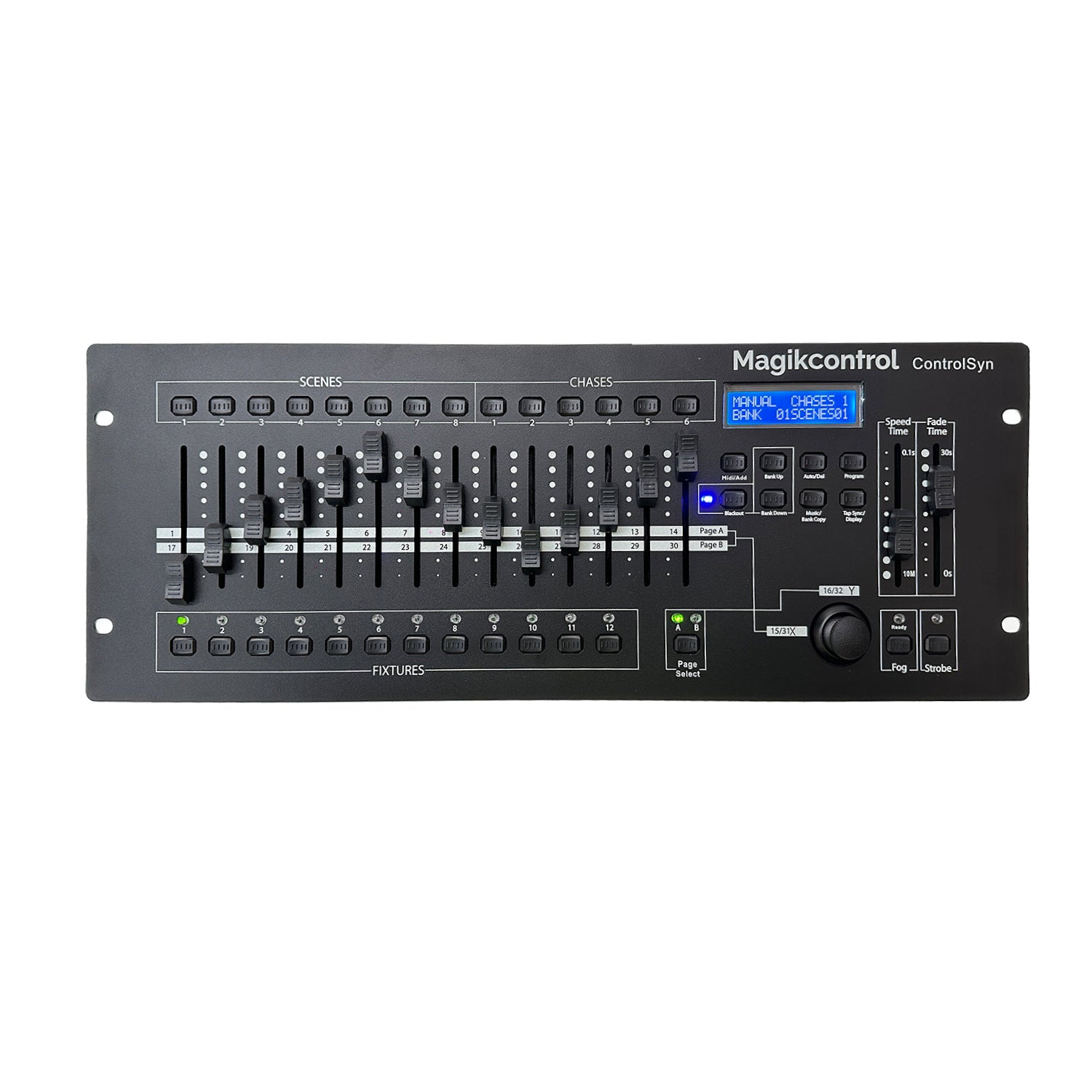

Rack-mountable 384-channel DMX controller for use in lighting systems with up to 24 DMX-controlled lights. The controller can control 24 light effects via up to 16 DMX channels each, each with a slider. The controller is therefore also suitable for controlling scanners.

The device is suitable for stages, mobile entertainers, DJ's, etc.

Features:

  • Lighting control desk with 24x 16 effect channels
  • 2 channels can be assigned as pan and tilt channels for a scanner
  • Speed ​​and fade controls
  • 23 banks with 8 programmable scenes each (184 scenes in total)
  • 6 programmable chase sequences with up to 240 steps each
  • Processes can be activated individually or one after the other
  • Automatic sequence with adjustable fade and step time (0.1 - 10 min)
  • Manual sequence of steps at the push of a button
  • Music beat control of the steps via integrated microphone
  • Can also be controlled via MIDI commands
  • Blackout button
  • Protocol: DMX-512 (USITT), occupies channels 1-384
  • Connection via XLR sockets
  • Power supply: 12Vdc / 0.5A via included power supply
  • Dimensions: 48.2 (W) x 13.3 (D) x 5 (H) cm
  • Rack installation: 19 "/ 3U
  • Weight: approx 1.8kg
  • Package of delivery: C-384C DMX controller, Australia power supply unit, operating instructions
