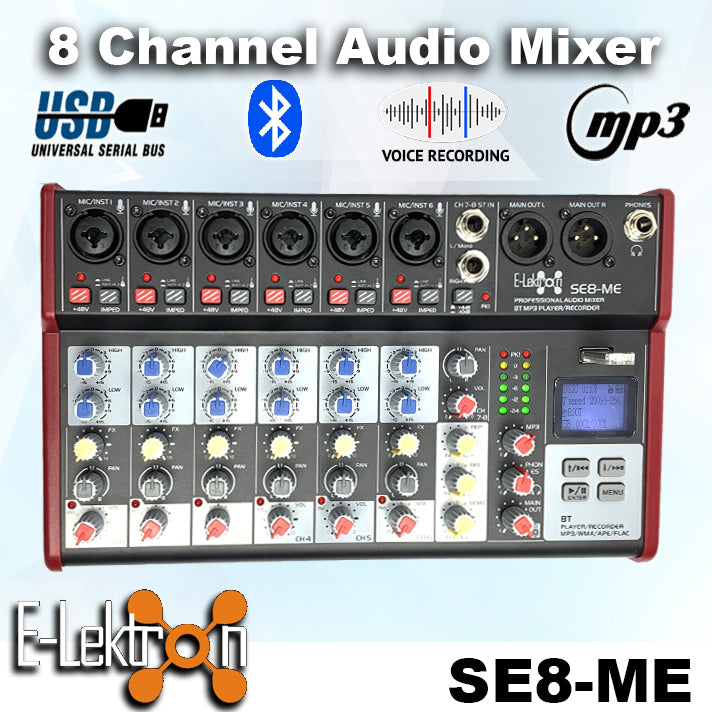

E-Lektron SE-8 Live Audio Mixer 8-Channel USB / Bluetooth / Soundcard / Phantom

  • $139.95
    Unit price per
Shipping calculated at checkout.



  • Live mixing console with 6 microphone / instrument channels incl. 48V phantom power

  • Mono / stereo channel

  • Stereo Bluetooth / USB channel with recording

  • Volume / pan / 2-band EQ / effects control each Microphone / Instrument Channel


--

Phantom Power Professional Live Audio PA Mixer 8-CHANNEL

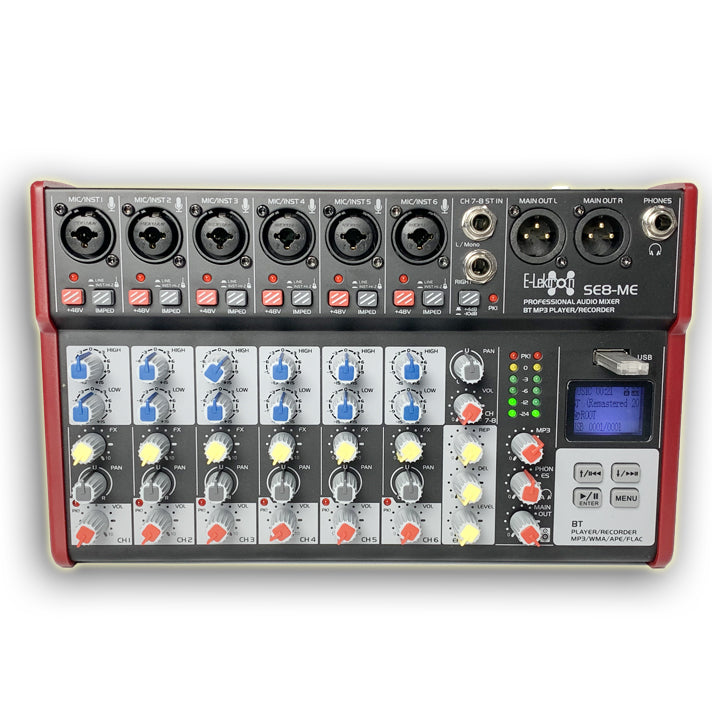

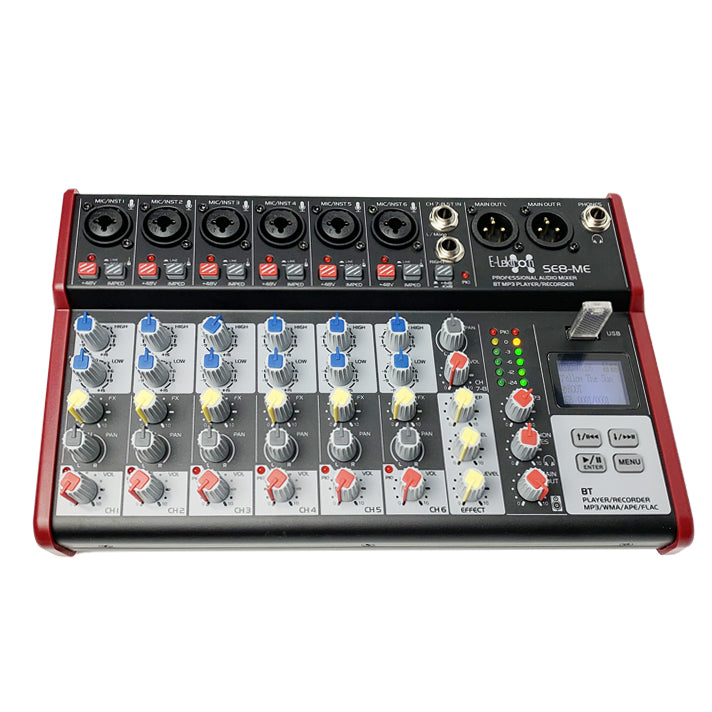

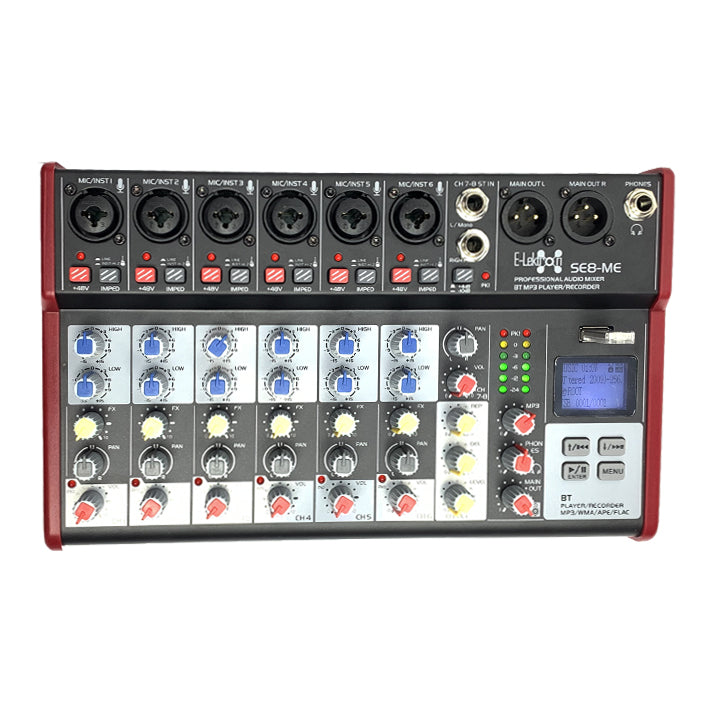

E-Lektron SE-8: mixer for stage, streaming, recording, etc.

Compact mixer with 6 microphone/instrument channels, stereo channel and stereo USB / Bluetooth channel. Fully equipped with MP3 player/recorder, sound card, Bluetooth, reverb effect and phantom power.

Features:
Live mixing console with 6 microphone / instrument channels incl. 48V phantom power
mono / stereo channel
stereo Bluetooth / USB channel with recording
built-in sound card for streaming via PC
volume / pan / 2-band EQ / effects control each Microphone / Instrument Channel
Digital Hall Effect Channel-to-Organize
Combined XLR / Jack Jacks, Level Switchable: Microphone or Line
Recording - Recording Function
Stereo MP3 player for USB flash drive, also plays WMA / APE / FLAC
LCD display
headphone jack
output via 2x XLR jack

Specifications:

Microphone / Instrument Channels: 6
Gain: -40 - + 40dB adjustable
Equalizer: 80Hz / 12kHz, +/- 15dB each
Phantom: + 48V
Impedance: switchable Line / Microphone
Combo Input Jack: XLR balanced / Jack (6.3mm) unbalanced

Stereo Line Channel: 1
Sensitivity: + 4dB / -10dB switchable
Input Jacks : 2x Jack (6.3mm)
Playback: mono with Pan, or stereo

Stereo USB / Bluetooth Channel: 1
Capacity Memory Stick: up to 16GB (FAT32)
Playable Files: MP3 / WAV / APE / FLAC
ADC / DAC: 16-bit / 48kHz
File Format Recording: 128Kbs / 48kHz Sampling
Bluetooth Version: 4.2

Generally
Output Level: 3Vrms (75 ohms), + 4dBu, max + 22dBu

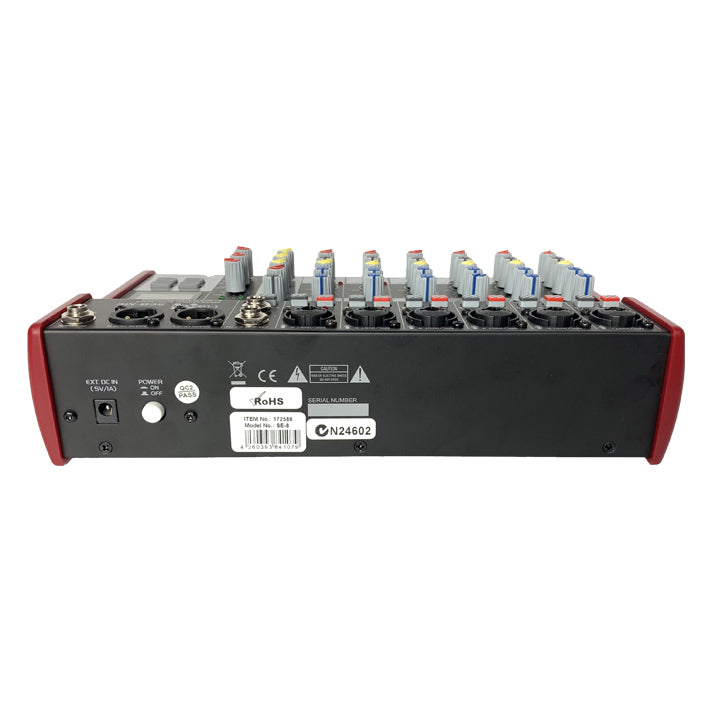

Output Jacks : 2x XLR Balanced
Frequency Response: 20 - 20,000Hz (+/- 0.5dB)
Dynamic Range: 102dB
Distortion: <0.03% (THD + N @ 1kHz)
Stereo Crosstalk : 92dB

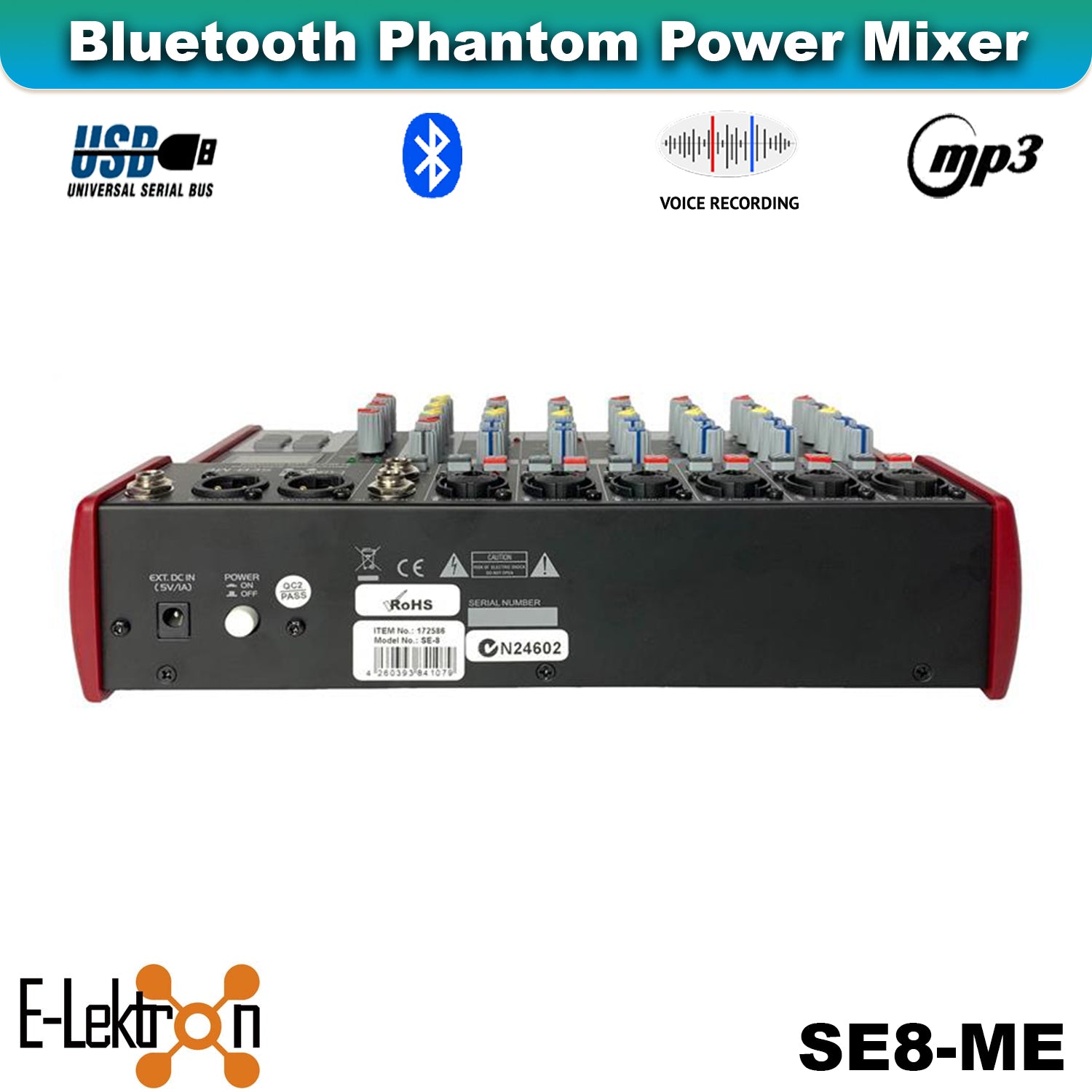

Power: 5Vdc / 1A (power adapter included)

Size: 28 X 66 X 17 cm
