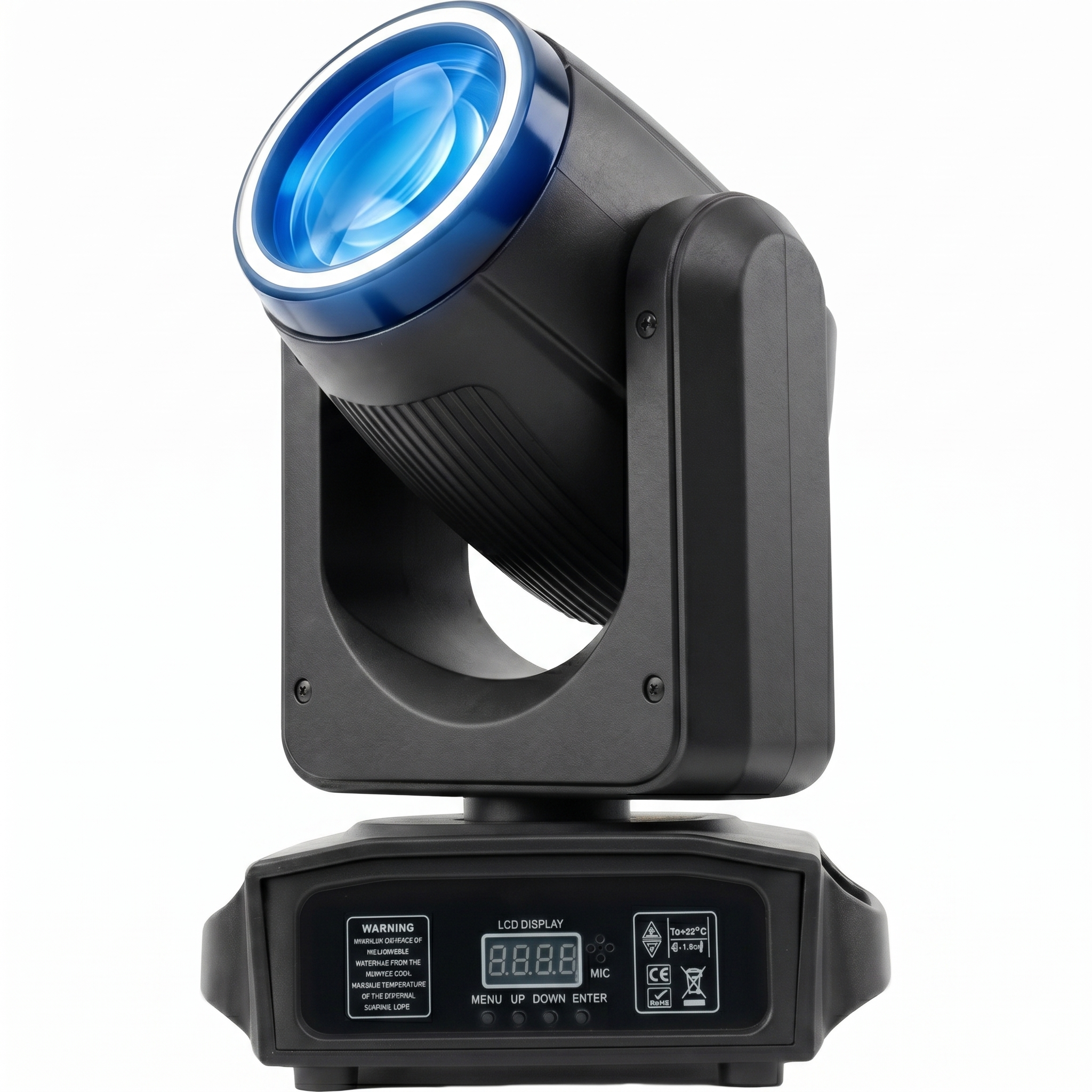

CR Lite Orbis 100 - 100W LED Beam Moving Head
The CR Lite Orbis 100 is a feature-packed LED beam moving head that pairs a powerful 100W white LED beam with a vibrant RGB outer ring to deliver bold, eye-catching visual effects. Compact but seriously punchy, it brings professional-grade movement, colour and beam effects to any venue — from stages and nightclubs to bars, houses of worship and mobile DJ rigs.
At its core is a razor-sharp 2.8° beam that pushes out an intense 25,185 lux at 5 metres, while the surrounding ring of 21 RGB strobe LEDs adds a striking halo of colour and high-energy strobe effects. A 7 + open colour wheel, 7 + open gobo wheel and an 18-facet rotating prism give a huge range of looks, from tight aerial beams to sweeping mid-air patterns.
With a 540° pan and 200° tilt range, the Orbis 100 fills the room with fast, fluid movement, and its adjustable range makes it just as effective for forward-facing shows. Control is flexible too: choose 11 or 14-channel DMX for full programmability, or run it in auto, sound-to-light or master/slave modes for instant plug-and-play performance. Rig it on truss or stand it freestanding using the included bracket.
Key Features
- Powerful 100W white LED beam (12000K) for an intense, long-throw beam

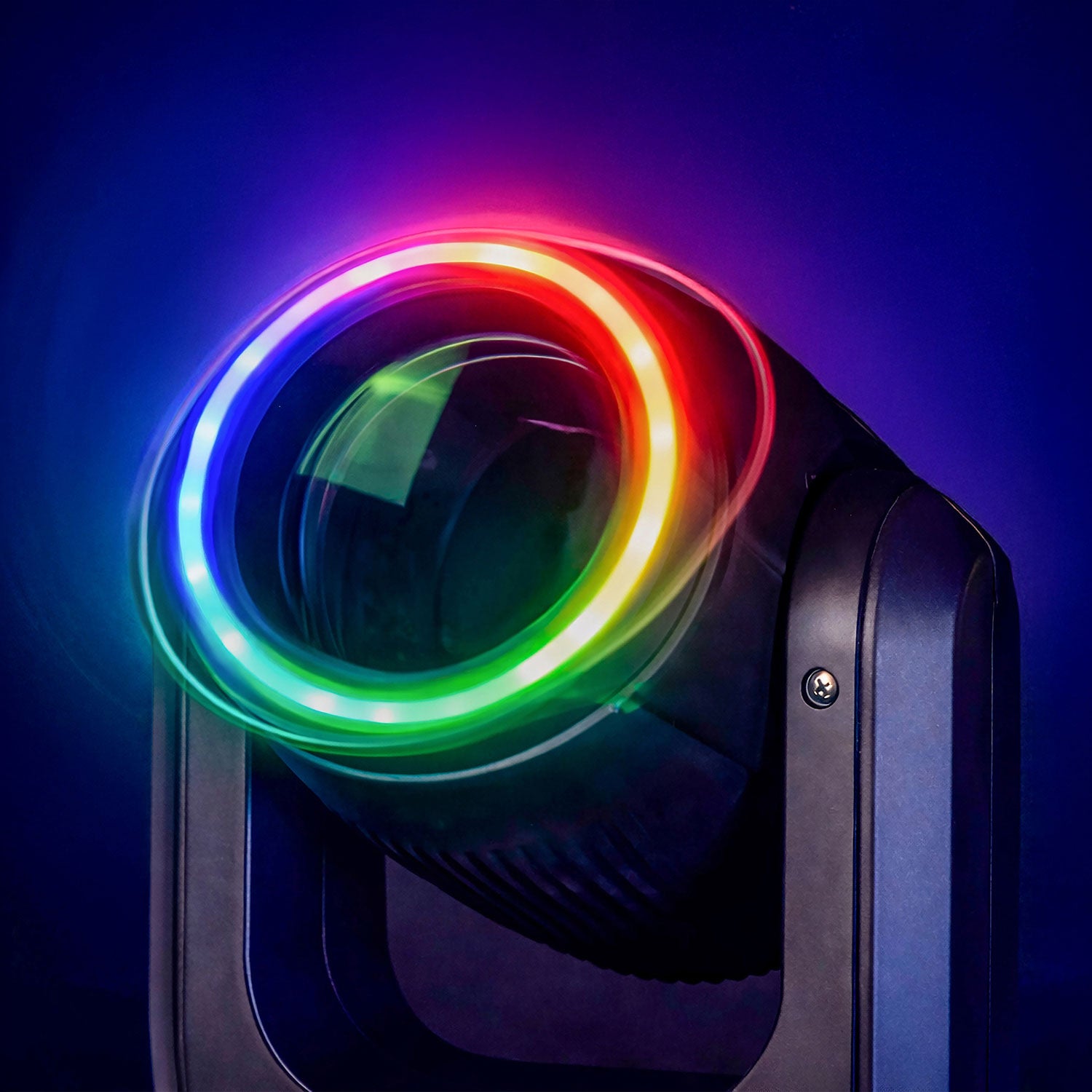

- Vibrant RGB outer ring with 21 x 5050 strobe LEDs for colour halo and strobe effects

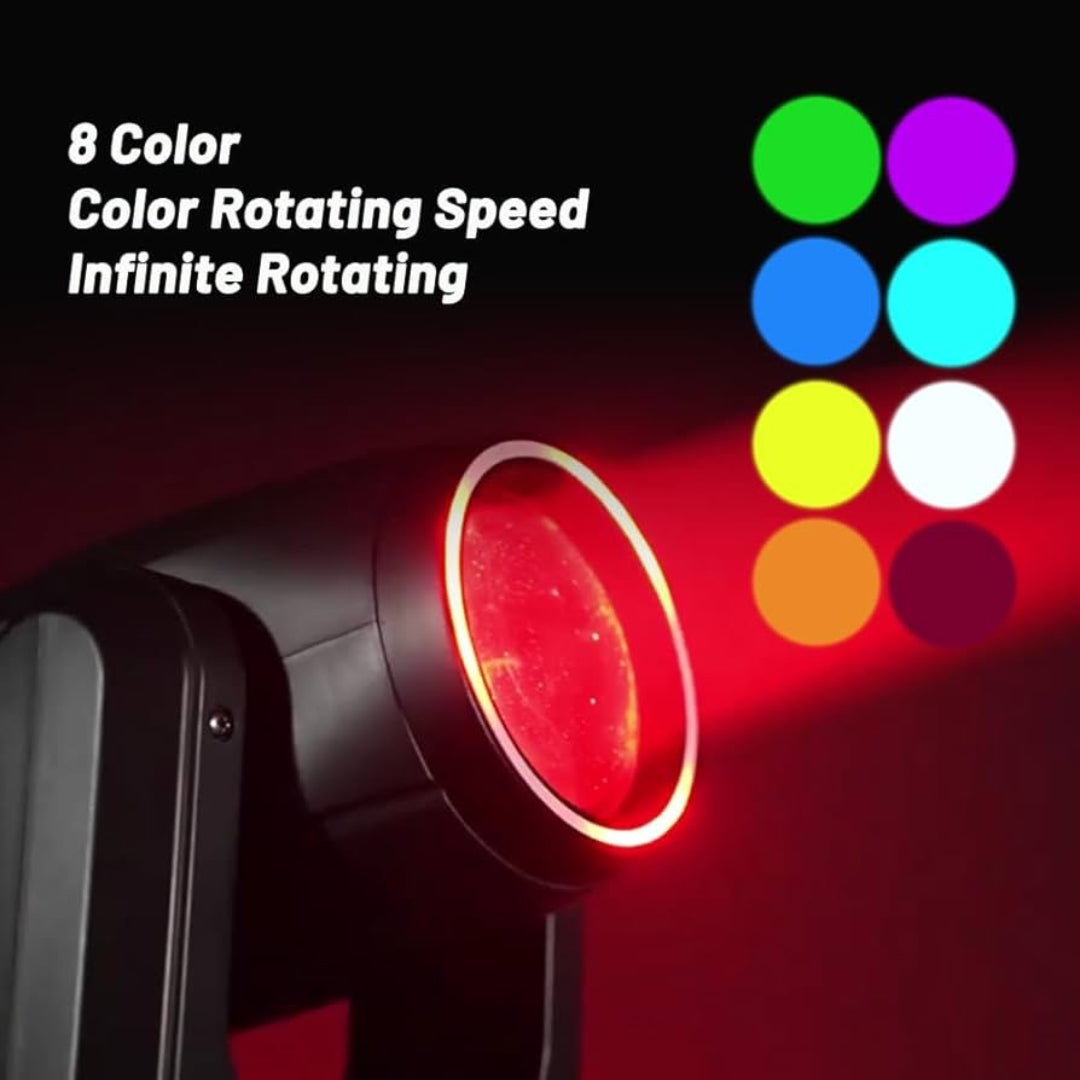

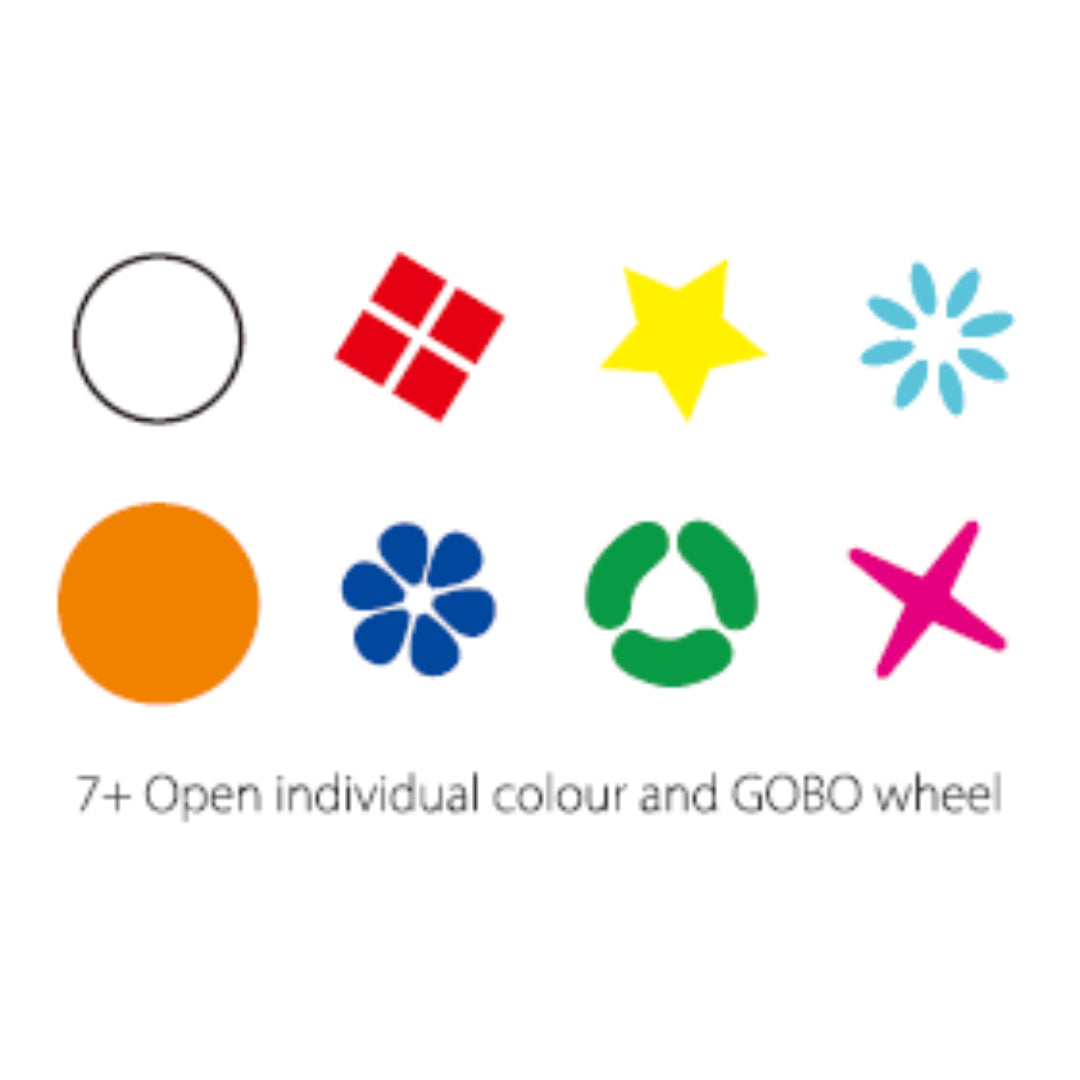

- 7 + open colour wheel and 7 + open gobo wheel for varied looks
- 18-facet rotating prism for dramatic beam splitting
- 540° pan and 200° tilt for wide, dynamic coverage
- 11 or 14-channel DMX control
- Auto, DMX, sound-to-light and master/slave operating modes
- Truss-mountable or freestanding with the included bracket
Ideal For
- Stages and live events
- Nightclubs and bars
- Mobile DJs and entertainers
- Houses of worship and function venues
Technical Specifications
- LED: 100W white LED 12000K + 21pcs 5050 strobe LEDs (outer ring)
- Beam angle: 2.8°
- Lux @ 5m: 25,185 lux
- Pan range: 540°
- Tilt range: 200°
- DMX channels: 11 or 14

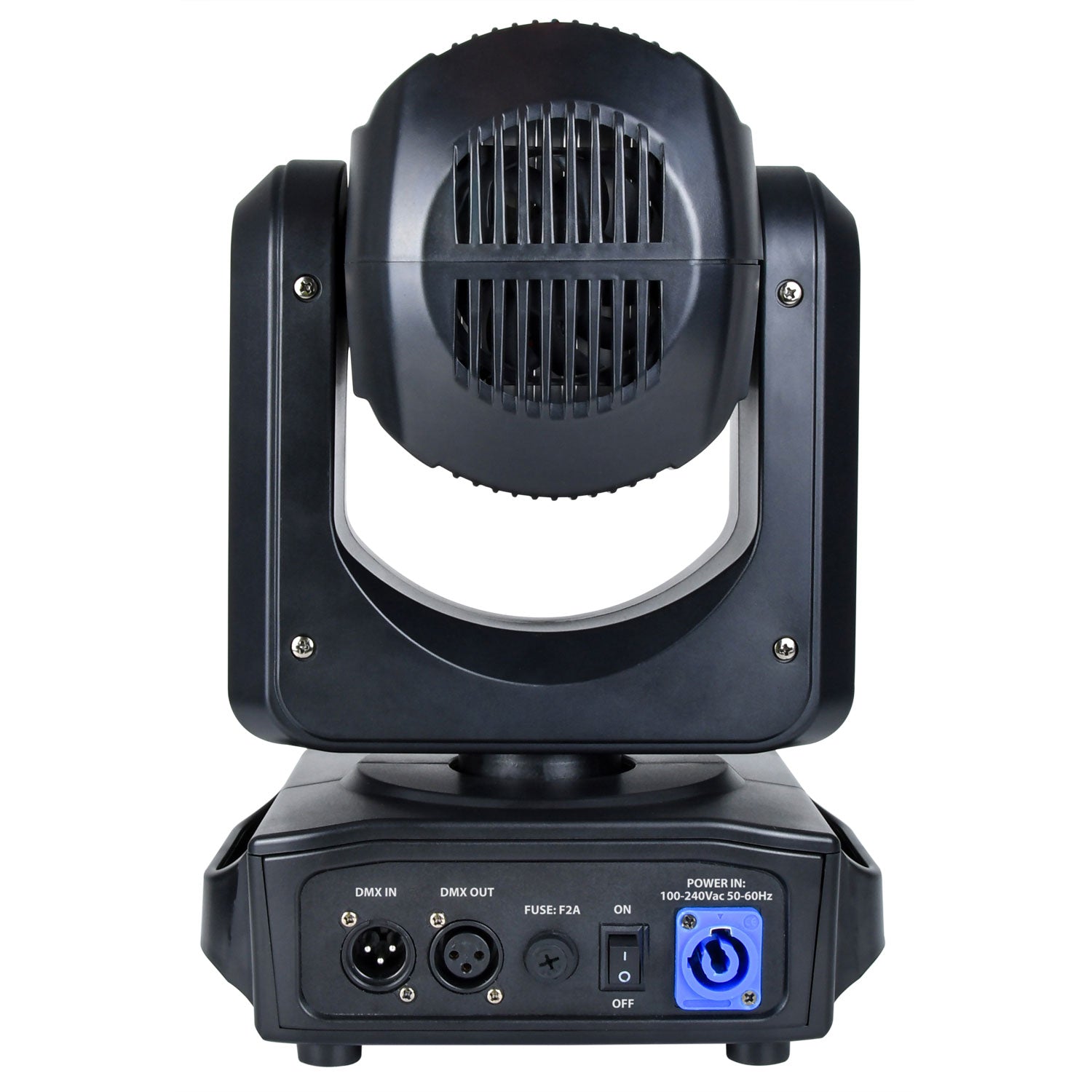

- DMX connection: 3-pin DMX (In/Out)
- Operating modes: Auto / DMX / Sound-to-light / Master-slave
- Power supply: 110-240 Vac, 50/60 Hz
- Power consumption: 120W
- Fuse: F2A
- Dimensions: 165mm x 200mm x 300mm
- Weight: 3.8 kg
In the Box
- CR Lite Orbis 100 moving head
- Mounting bracket
- 1.5m AUS Power Lead
